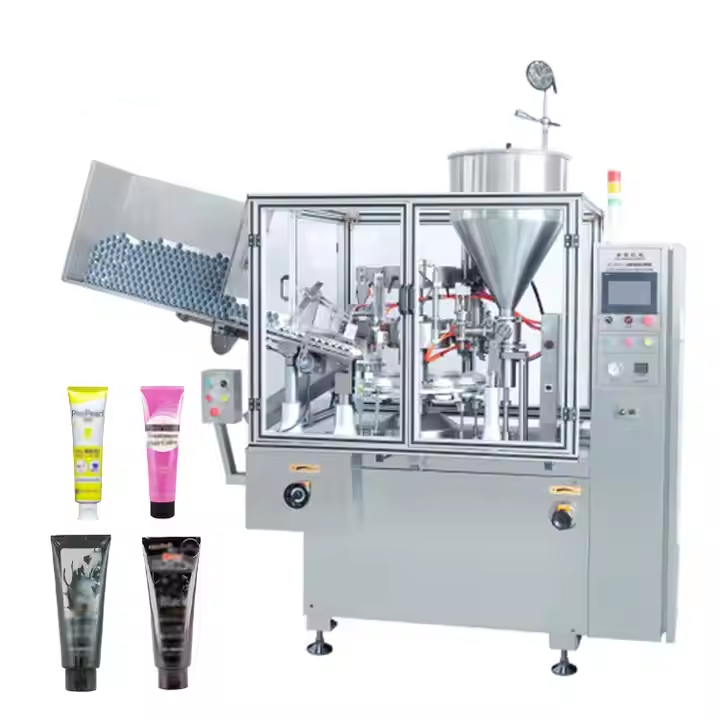

High Quality Filling and Sealing Machine Liquid Pigment Tube Machine

Detail

Parameters

Industry-specific attributes

packaging type

Stand-up Pouch

packaging material

Plastic

Voltage

220V

filling material

Lotion, Cream

Other attributes

application

Commodity, Chemical

automatic grade

Automatic

warranty

1 Year

filling accuracy

99.5%

driven type

Pneumatic and Eletric

place of origin

Guangzhou China

dimension(l*w*h)

Size can be customized

key selling points

High Safety Level and High-accuracy

machinery test report

Provided

video outgoing-inspection

Provided

core components

motor, Pump, PLC, Engine

keywords

Automatic Bottle Filling Machine

Function

Filling packaging

Suitable for packaging

According to cusomer packaging

Type

Automatic

Canton facotry

Guangzhou machinery manufactory

Advantage

Durable/high effect

Fuction

Selected by the customer, can be customized

more Function

Would Be Customized

Packing type

Would Be Customized

This product is a high-tech equipment that was successfully designed and developed by our company after introducing it from abroad and combining it with GMP requirements. It has the characteristics of reasonable structure, integrated functions, convenient operation, accurate loading volume, stable operation and low noise. The PLC programmable controller is used to program the operation of the whole machine, and the processes from liquid to high-viscosity fluid materials (paste) to filling and sealing to coding batch numbers (including production date) are fully automated. It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes, composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and complies with GMP specifications.

Hoses material	metal pipe, aluminum pipe, plastic pipe, composite pipe
Hose diameter	Φ10- Φ42 Φ10- Φ60
Hose length	50-250 (can be customized) 50-250 (can be customized)
Filling capacity	5-500ml/tube (adjustable) 5-500ml/tube (adjustable)
Filling accuracy	≤±0.5% ≤±0.5%
Speed(r/min)	3-10 2.5-7
Production capacity (pieces/minute)	3-10 2.5-7
Compressed air	0.55-0.65mpa 0.55-0.65mpa
Motor power	2kw (380V/220V 50Hz) 2kw (380V/220V 50Hz)
Heat sealing power	3kw
Overall dimensions: (mm)	(mm) 2500×1020 ×1980 2500×1020×1980
Host weight (kg)	1100kg
